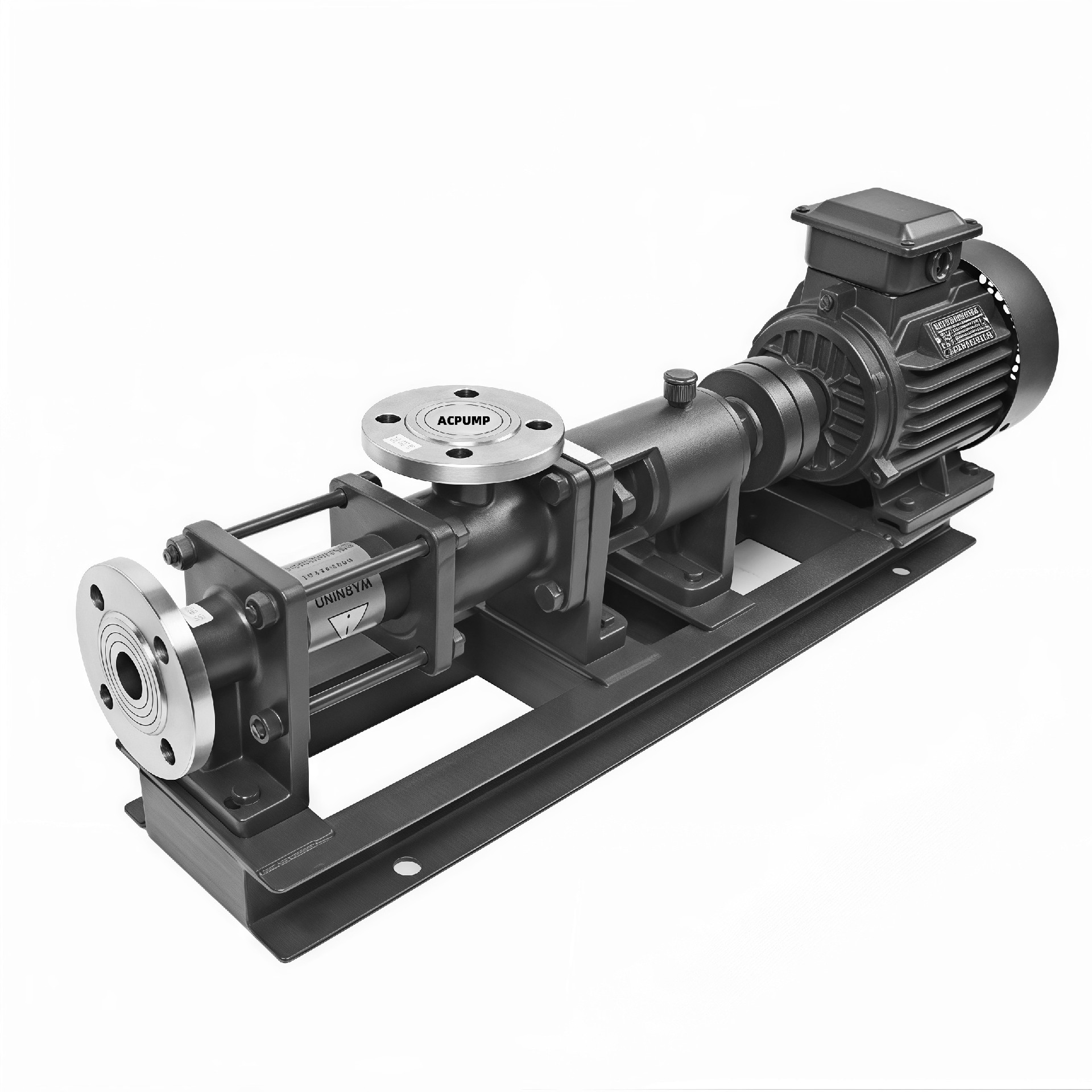

The G-type single screw pump is a positive displacement pump derived from the Archimedes screw pump. It relies on the meshing of the screw shaft (rotor) and the rubber sleeve (stator). When the power end drives the rotor via a universal joint to rotate around the stator center, the rotor and stator continuously engage to form vacuum chambers. These vacuum chambers move axially at a constant speed, transporting the conveyed medium from the inlet to the outlet. The medium drawn into the vacuum chambers flows through the stator without being agitated or damaged. AC Pump Industry's G-type stainless steel screw pump exhibits strong adaptability to various media, stable flow rates, and virtually pulsation-free pressure.

AC Pump Industry conducts detailed analysis and research on stainless steel screw pump products, continuously upgrading and innovating the G-type single screw pump. Currently, AC's single screw pump features a more rational technical structure, with a shortened pitch and reduced size. The optimized universal joint effectively minimizes mechanical vibration, extending the pump's service life. Additionally, stainless steel screw pumps can be customized as needed.

Advantages of G-Type Stainless Steel Screw Pumps Compared to Other Pump Types

1.  Unlike centrifugal pumps, screw pumps do not require valves, offering more stable flow rates.

2.  Compared to plunger pumps, G-type stainless steel single screw pumps exhibit stronger self-priming capabilities.

3.  Unlike diaphragm pumps, stainless steel screw pumps can handle various mixtures containing gases, solid particles, or fibers, as well as corrosive substances.

4.  Compared to gear oil pumps, G-type stainless steel single screw pumps can transport higher-viscosity media.

5.  Unlike plunger pumps, diaphragm pumps, and gear pumps, G-type single screw pumps can be used for pharmaceutical filling and metering.
