Product Description

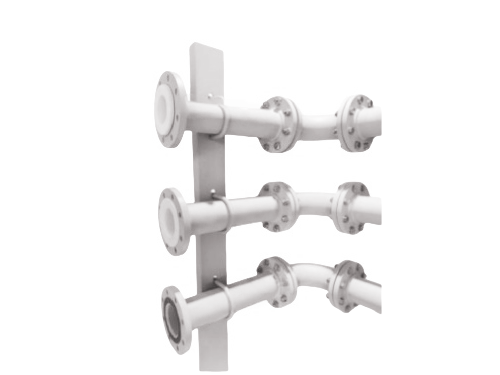

The steel-clad PTFE composite pipe is manufactured through drawing tight lining or isostatic sintering processes. It combines the mechanical properties of steel pipes with the high corrosion resistance, anti-scaling, and microbial growth inhibition characteristics of PTFE plastic. It is an ideal pipeline for conveying highly corrosive media such as strong acids, alkalis, industrial salts, and aggressive gases. It is widely used in industries such as pharmaceuticals, chemicals, and hydrogen production.

Product Features

1. Resistant to strong corrosion, high and low temperatures

2. Smooth inner lining surface, non-adhesive to various substances

3. Non-toxic to organisms

4. Long service life, typically over 10 years

5.


Parameter Range

• Applicable pipe diameter: DN25–DN1200

• Applicable length: Up to ~4m

• Applicable temperature: -50°C to 180°C

• Applicable pressure: -90kPa to 2.5MPa

• Lining thickness: 2mm–15mm
