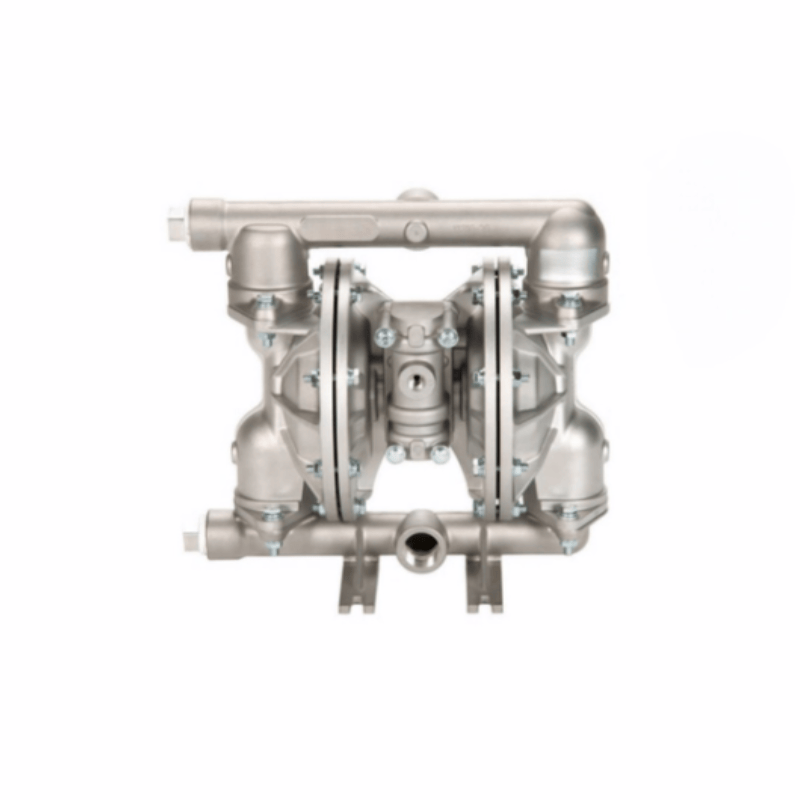

Mô tả sản phẩm
Wetted Parts Material: PP/PVDF/Aluminum/Stainless Steel
Features:
• 1/2 in (12.7 mm) center- and end-porting
• No seals to leak or fail
• Quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
• High flow rates in a small, portable package
• External controller for optional remote operation
Applications:
• Machine lubrication servicing
• Drum evacuation
• Plating and dip tanks
• Water treatment
Typical Fluids Handled:
• Cleaning fluids and detergents
• Chemicals
• Ceramic glazes
• Inks
• Solvents and flammables
• Acids and bases
Technical Specifications:
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 15gpm(57lpm) |
| Max Reciprocating Speed | 400cpm |
| Max Suction Height (Dry Sucking) | 4.5m |
| Max Permitted Grain | 3/32in.(2.5mm) |
| Max.Air Consumption | 20gpm(10L/s) |
| Air Inlet size | 1/4in.npt(f) |
| Air Outlet size | 3/8in.npt(f) |
| Fluid Inlet size | 1/2 in.npt(f)or bspt(f) |
| Fluid Outlet size | 1/2 in.npt(f)or bspt(f) |
| Weight | PVDF pump 3.7kg PP pump 2.7kg Aluminum pump 4.5kg; Stainless Steel 6.8kg |
